Eigenschaften

Technische Daten

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction worksÂ , Energy & Mining

Showroom Location: None

Condition: New

Type: Rotary Drilling Rig

Power Type: Electric

Usage: Ore

Dimension(L*W*H): 3300*1000*1500mm

Weight: 1350kg

Warranty: 1 YEAR(Except consumables and man-made damage)

Local ServiceÂ Location: Brazil, Russia

Zertifizierung: ISO9001;ISO14001;CE

Name: Hydraulic anchor drilling rig

Application: Geological Exploration

Drill Angle: -90~30Â°

Drill Head Max. Lifting Force: 45KN

Drill Head Max. Thrust Force: 30KN

Drill Head Feeding Stroke: 1800mm

Electromotor Power: 30

Drill Head Rotary Speed: 5-130rpm

Borehole Depth: 60-70m

Overall Dimension: 3300*1000*1500mm

Grundinformation

Zertifizierung: ISO9001;ISO14001;CE

Zahlung und Versand AGB

Packaging Details: cartons

Supply Ability: 10 Set/Sets per Month

Produkt-Beschreibung

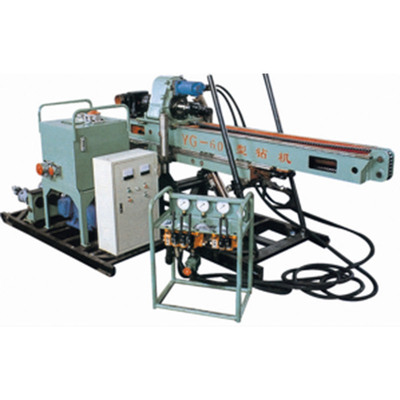

YG-60 hydraulic small portable anchor drill head 45KN head max. lifting force for anchoring rig Drill

Product Display

Model		YG-60
Borehole Depth		60-70
Borehole Diameter		Φ110-Φ180mm
Recommended Drill Rod		Φ73-1500mm; Φ89-1500mm
Drill Angle		-90~30°
Drill Head Rotary Speed(FR/RE)		5~130rpm
Drill Head Feeding Stroke		1800mm
Drill Head Max. Lifting Force		45KN
Drill Head Max. Thrust Force		30KN
Electromotor Power		22KW
Bigger Part Weight,appx.		250kg
Owerall Dimension(Drill Reduce Type)		3300X1000X1500mm

Application Scenario

Other Products

A:The company has used the dedicated CNC, and gotten the quality of inspection and detection means. On January 24th of 2014, Wuxi Jinfan Drilling Equipment Co., Ltd., has successfully been listed on the NEEQ.

Q:Are you are manufacturer or trading company?

A:We have both trading compang and factory.

Q:How about your customer service?

A:We have customer support team of 13 years experience.

We offers best service to all the customers over the world with tremendous technical strength and high quality of products. If you have any question,please contact us an soon as possible.
